THF fluorine plastic alloy centrifugal pump / IHF fluorine plastic centrifugal pump / fluorine alloy centrifugal pump / fluorine alloy centrifugal pump / chemical centrifugal pump / acid pump / hydrochloric acid pump / sulfuric acid pump

Meaning THFF80-65-160
T Code of enterprise
H Standardlized chemical pump
F Fluoroplastic
80 The inlet dia is 80mm
65 The out let dia is 65mm
160 Nominal dia of impeller
is 160mm

一、Product Introduction：

Product overview:
Fluorine centrifugal pump of the third generation of improved products, is in accordance with international standards and with non metal pump design and manufacturing technology for long-term delivery of any of the concentration of strong acid, alkali, salt, strong oxidizing agents and other corrosive media, the shell with metal shell lined with poly fluorinated ethylene propylene (FEP) and flow components with all the plastic (PTFE, FEP) alloy made, the advantages of a variety of plastic pump set, with high corrosion resistance, good abrasion resistance, high mechanical strength, aging, no toxin decomposition characteristics. In structure design, bold the shaft diameter, shorten the cantilever ratio, eliminating the defect of chemical pump, and improves the operation stability, reduce the maintenance cost and operation cost, import and export of the pump are used steel reinforcement to enhance the resistance to pressure of the pump. The pump has the advantages of corrosion resistance, abrasion resistance, high temperature resistance, non oxidation, high mechanical strength, stable operation, advanced and reasonable structure, reliable sealing performance, convenient disassembly and maintenance, long service life and so on.
Features:
1.THF fluorine lined centrifugal pump is designed according to international standard and tech of nonmetal pump, with characteristics of anti-corrosion, abrasion resistance, anti-aging, high mechanical strength and energy-efficient.
2.Many options of material on pump body, like casting iron, carbon steel, 304 stainless steel, 316L stainless steel, etc. Fluoroplastic (PTFE, FEP and PFA) is the most superior anti-corrosive materials in the nowadays world, be free from corrosive medium of any concentration of acid, lye, oxidants, etc.
3.We use CFD computational fluid dynamics to design hydraulic components and the module. Pump body, pump cover, impeller are molded pressing and then sintered. With characteristics of wide flow, high efficiency, good NPSH, small radial force, accurate size, smooth channel and good interchangeability.
4.The shaft seal can use external mounted mechanical seal, our independent research 179 single face, double end face mechanical seal, the sealing surface is made of silicon carbide,SSIC, with API682 machine seal flushing plan, to achieve delivery requirements of various media.
5.Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.no need to dismount pipe, easier maintenance.
Application：
Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Performance range：Design pressure：1.6Mpa；Flow:2-1400m3/h；Head：3-125m；Power：0.55-160kw；
Applicable temperature：-20～120℃，can be up to 180℃ if using new type material.
NOTES：Please indicate during ordering if the proportion of medium is lagger than 1.3mg/cm . No idling running. No delivering medium with particles or crystalline.

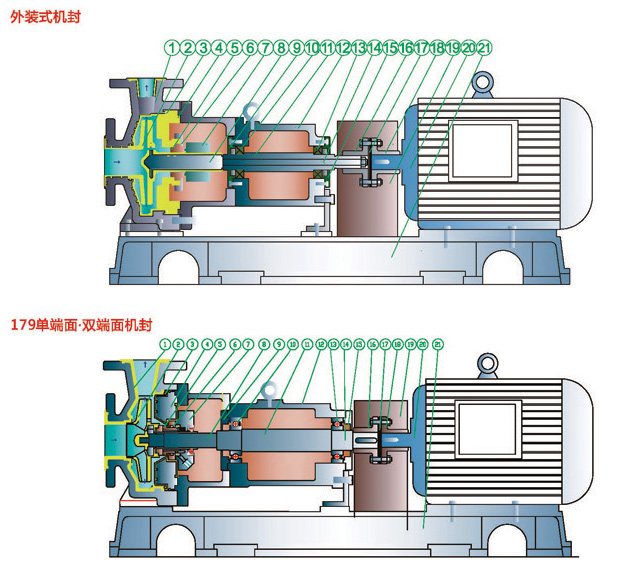

二、Structure drawing：

Part Material Part Material Part Material
1.pump body Ht200/ lined F46 8.bracket HT200 15.gland of back bearing HT200
2.impeller fluoroplastic alloy 9.gland of front bearing HT200 16.Pump coupling 45#
3.gasket fluorubber 10.front bearing 304 17.diaphragm 304
4.pump cover HT200/lined F46 11.bearing box HT200 18.electric coupling 45#
5.static ring SSIC/hard alloy 12.shaft 304/316/316L 19.shield 304
6.seal gland 304/316/316L 13.pull rod 45# 20.motor per client request
7.dynamic ring SSIC/hard alloy 14.back bearing 304 21.base plate HT200



三、Performance Curve：

四、Performance data sheet：

model

Rotating speed
r/min

 flow
m3/h		 Head
m		 effectiveness
％		 NPSH
m		 Import X export
mm		 power
kw		 weight
kg
THF25-20-125 2900 2 20.5 25 2.5 25×20 1.1 75
3.2 20 32 2.5
5.5 18 46 2.5
1450 0.75 5.4 15 2.5 0.37 55
1 5 17 2.5
1.6 4.6 21 3
THF25-20-160 2900 1.5 34.3 19 2.5 25×20 1.5 80
2 32 22 2.5
3.2 29.6 25 3
1450 0.75 8.5 16 2.5 0.37 55
1 8 18 2.5
1.6 7.5 24 3
THF25-20-200A 2900 1.5 42 28 2.5 25×20 3 124
2 40 32 2.5
3.2 38 30 3
1450 0.75 10.5 15 2.5 0.55 90
1 10 18 2.5
1.6 9.5 24 3
THF25-20-200 2900 1.5 52.5 18 2.5 25×20 4 124
2 50 20 2.5
3.2 48 22 3
1450 0.75 13.1 15 2.5 0.75 90
1 12.5 18 2.5
1.6 12 24 3
THF25-20-250A 2900 1.5 62 26 2.5 25×20 7.5 225
2 60 30 2.5
3.2 58 28 3
1450 0.75 15.5 15 2.5 1.5 118
1 15 18 2.5
1.6 14.5 24 3
THF25-20-250B 2900 1.5 72 26 2.5 25×20 5.5 225
2 70 30 2.5
3.2 68 28 3
1450 0.75 18 15 2.5 1.1 118
1 17.5 18 2.5
1.6 17 24 3
THF25-20-250 2900 2 80 12 2.5 25×20 7.5 225
3.6 80 18 2.5
5.5 78.5 26 3
1450 0.75 20.5 11 2.5 1.5 118
1 20 16 2.5
1.6 19.5 24 3
THF32-20-125 2900 2 22 25 2.5 32×20 1.5 75
3.2 20 32 2.5
5.5 18.5 46 3
1450 1 5.4 24 2.5 0.55 45
1.6 5 22 2.5
2.75 4.6 22.5 3
THF32-20-160 2900 2 34.3 25 2.5 32×20 2.2 98
3.2 32 24 2.5
5.5 29.6 21.5 3
1450 1 8.5 18 2.5 0.55 55
1.6 8 22 2.5
2.75 7.5 24.5 3
THF32-20-200A 2900 2 42 32 2.5 32×20 4 140
3.2 40 36 2.5
5.5 38 34 3
1450 1 10.5 25 2.5 0.75 78
1.6 10 28 2.5
2.75 9.5 26 3
THF32-20-200 2900 2 52.5 22 2.5 32×20 4 140
3.2 50 26 2.5
5.5 48 28.5 3
1450 1 13.1 15 2.5 0.75 78
1.6 12.5 18 2.5
2.75 12 19.5 3
THF32-20-250A 2900 2 62 26 2.5 32×20 7.5 160
3.2 60 30 2.5
5.5 58 28 3
1450 1 15.5 15 2.5 1.1 98
1.6 15 18 2.5
2.75 14.5 24 3
THF32-20-250B 2900 2 72 26 2.5 32×20 7.5 160
3.2 70 30 2.5
5.5 68 28 3
1450 1 18 15 2.5 1.1 98
1.6 17.5 18 2.5
2.75 17 24 3
THF32-20-250 2900 2 82 16 2.5 32×20 11 160
3.2 80 20 2.5
5.5 78.5 23 3
1450 1 20.5 15 2.5 1.5 98
1.6 20 18 2.5
2.75 19.5 24 3
THF40-25-125 2900 6.3 22 30 2.5 40×25 2.2 75
8 32 31 2.5
10 30 32 3
1450 2.2 5.4 26 2.5 0.55 42
3.2 5 28 2.5
4.2 4.6 32 3
THF40-25-160 2900 6.3 32 30 2.5 40×25 3 124
8 32 31 2.5
10 30 32 3
1450 2.2 8.5 23 2.5 0.55 78
3.2 8 25 2.5
4.2 7.5 28 3
THF40-25-200A 2900 4.4 42 26 2.5 40×25 4 170
6.3 40 33 2.5
8.3 38 32 3
1450 2.2 10.5 25 2.5 0.55 102
3.2 10 28 2.5
4.2 9.5 26 3
THF40-25-200 2900 6.3 52.5 20 2.5 40×25 5.5 170
8 50 23 2.5
10 48 30 3
1450 2.2 13.1 25 2.5 1.1 102
3.2 12.5 28 2.5
4.2 12 26 3
THF40-25-250A 2900 4.4 62 24 2.5 40×25 7.5 255
6.3 60 28 2.5
8.3 58 28 3
1450 2.2 15.5 20 2.5 1.1 155
3.2 15 24 2.5
4.2 14.5 22 3
THF40-25-250B 2900 4.4 72 24 2.5 40×25 11 255
6.3 70 28 2.5
8.3 68 28 3
1450 2.2 18 20 2.5 1.5 155
3.2 17.5 24 2.5
4.2 17 22 3
THF40-25-250 2900 4.4 82 24 2.5 40×25 11 255
6.3 80 28 2.5
8.3 78.5 28 3
1450 2.2 20.5 20 2.5 1.5 155
3.2 20 24 2.5
4.2 19.5 22 3
THF50-32-125 2900 7.5 22 43 2 50×32 3 110
12.5 20 51 2
15 18.5 49 2.5
1450 3.75 5.4 40 2 0.55 55
6.3 5 45 2
7.5 4.6 42 2.5
THF50-32-160 2900 7.5 34.3 35 2 50×32 4 135
12.5 32 47 2
15 29.6 47 2.5
1450 3.72 8.5 30 2 0.55 68
6.3 8 40 2
7.5 7.5 40 2.5
THF50-32-200A 2900 7.5 42 28 2 50×32 5.5 180
12.5 40 39 2
15 38 43 2.5
1450 3.7 10.5 23 2 0.75 170
6.3 10 33 2
7.5 9.5 36 2.5
THF50-32-200 2900 7.5 52.5 28 2 50×32 7.5 180
12.5 50 40 2
15 48 48 2.5
1450 3.7 13.1 22 2 1.1 170
6.3 12.5 33 2
7.5 12 40 2.5
THF50-32-250A 2900 7.5 62 23 2 50×32 7.5 255
12.5 60 33 2
15 58 36.5 2.5
1450 3.75 15.5 17 2 1.1 155
6.3 15 27 2
7.5 14.5 31 2.5
THF50-32-250B 2900 7.5 72 23 2 50×32 15 255
12.5 70 33 2
15 68 36.5 2.5
1450 3.75 18 17 2 2.2 155
6.3 17.5 27 2
7.5 17 31 2.5
THF50-32-250 2900 7.5 82 23 2 50×32 18.5 255
12.5 80 33 2
15 78.5 36.5 2.5
1450 3.75 20.5 17 2 2.2 155
6.3 20 30 2
7.5 19.5 33 2.5
THF65-50-125 2900 15 21.8 46 2 65×50 4 135
25 20 61 2
30 18.5 67 2.5
1450 7.5 5.35 46 2 0.55 75
12.5 5 61 2
15 4.7 67 2.5
THF65-50-160 2900 15 35 46 2 65×50 5.5 155
25 32 56 2
30 30 65 2.5
1450 7.5 8.8 40 2 1.1 145
12.5 8 51 2
15 7.2 60 2.5
THF65-40-200A 2900 15 42 41 2 65×40 7.5 210
25 40 52 2
30 38 53.5 2.5
1450 7.5 10.5 35 2 1.5 132
12.5 10 46 2
15 9.5 47.5 2.5
THF65-40-200 2900 15 53 35 2 65×40 11 210
25 50 51 2
30 47 48 2.5
1450 7.5 13.2 30 2 1.5 132
12.5 12.5 46 2
15 11.8 42 2.5
THF65-40-250A 2900 15 62 34 2 65×40 15 360
25 60 46 2
30 58 50 2.5
1450 7.5 15.5 28 2 2.2 240
12.5 15 39 2
15 14.5 43 2.5
THF65-40-250B 2900 15 72 34 2 65×40 18.5 360
25 70 46 2
30 68 50 2.5
1450 7.5 18 28 2 3 240
12.5 17.5 39 2
15 17 43 2.5
THF65-40-250 2900 15 82 33 2 65×40 22 360
25 80 48 2
30 78 50 2.5
1450 7.5 21 28 2 4 240
12.5 20 43 2
15 19.4 45 2.5
THF65-40-315A 2900 15 105 28 2.5 65×40 30 480
25 100 39 2.5
30 98 42.5 3
1450 7.5 26.2 22 2.5 5.5 260
12.5 25 33 2.5
15 24.5 37 3
THF65-40-315 2900 15 127 28 2.5 65×40 37 480
25 125 39 2.5
30 123 42.5 3
1450 7.5 32.3 22 2.5 5.5 260
12.5 32 33 2.5
15 31.7 37 3
THF80-65-125 2900 30 22.5 52 3 80×65 7.5 195
50 20 65 3
60 18 70 3.5
1450 15 5.6 50 2.5 1.1 125
25 5 64 2.5
30 4.5 68 3
THF80-65-160 2900 30 36 60 2.5 80×65 11 228
50 32 64 2.5
60 29 53 3
1450 15 9 58 2.5 1.5 145
25 8 62 2.5
30 7.2 50 3
THF80-50-200A 2900 30 42 53 2.5 80×50 15 250
50 40 63 2.5
60 38 62 3
1450 15 10.5 44 2.5 2.2 155
25 10 57 2.5
30 9.5 58 3
THF80-50-200 2900 30 53 53 2.5 80×50 15 250
50 50 63 2.5
60 47 55 3
1450 15 13.2 49 2.5 3 155
25 12.5 57 2.5
30 11.8 48 3
THF80-50-250A 2900 30 62 44 2.5 80×50 22 480
50 60 57 2.5
60 58 59 3
1450 15 15.5 39 2.5 3 370
25 15 51 2.5
30 14.5 52.5 3
THF80-50-250B 2900 30 72 44 2.5 80×50 30 480
50 70 57 2.5
60 68 59 3
1450 15 18 39 2.5 4 400
25 17.5 51 2.5
30 17 52.5 3
THF80-50-250 2900 30 84 48 2.5 80×50 37 480
50 80 56 2.5
60 75 50 3
1450 15 21 39 2.5 5.5 400
25 20 51 2.5
30 18.8 52.5 3
THF80-50-315A 2900 30 105 39 2.5 80×50 45 560
50 100 51 2.5
60 98 52.5 3
1450 15 26.2 35 2.5 7.5 476
25 25 46 2.5
30 24.5 47.5 3
THF80-50-315 2900 30 128 39 2.5 80×50 55 560
50 125 51 2.5
60 123 52.5 3
1450 15 32.5 35 2.5 11 476
25 32 46 2.5
30 31.5 47.5 3
THF100-80-125 2900 60 24 64 4 100×80 11 245
100 20 65 4.5
120 16.5 63 5
1450 30 6 60 2.5 1.5 198
50 5 64 2.5
60 4 63 3
THF100-80-160 2900 60 36 60 3.5 100×80 18.5 250
100 32 70 4
120 28 65 5
1450 30 9.2 58 2 3 192
50 8 69 2.5
60 6.8 68 3.5
THF100-65-200A 2900 60 42 63 3 100×65 30 480
100 40 72 3.6
120 38 71 4.8
1450 30 10.5 60 2 4 180
50 10 68 2
60 9.5 63 2.5
THF100-65-200 2900 60 54 63 3 100×65 37 256
100 50 68 3.6
120 47 56 4.8
1450 30 13.5 60 2 5.5 246
50 12.5 68 2
60 11.8 63 2.5
THF100-65-250A 2900 60 62 57 3.5 100×65 37 382
100 60 68 3.8
120 58 67 4.8
1450 30 15.5 50 2 5.5 342
50 15 63 2
60 14.5 64 2.5
THF100-65-250B 2900 60 72 57 3.5 100×65 45 480
100 70 68 3.8
120 68 67 4.8
1450 30 18 50 2 5.5 360
50 17.5 63 2
60 17 64 2.5
THF100-65-250 2900 60 87 60 3.5 100×65 45 550
100 80 68 3.8
120 74.5 67 4.8
1450 30 21.3 50 2 7.5 420
50 20 65 2
60 19 64 2.5
THF100-65-315A 2900 60 105 48 3 100×65 55 670
100 100 62 3.6
120 98 64 4.2
1450 30 26.2 44 2 7.5 580
50 25 58 2
60 24.5 60 2.5
THF100-65-315 2900 60 133 63 3 100×65 75 670
100 125 65 3.6
120 118 62 4.2
1450 30 34 60 2 11 580
50 32 64 2
60 30 63 2.5
THF125-100-200 2900 120 57.5 54 4.5 125×100 55 660
200 50 68 4.5
240 44.5 61 5
1450 60 14.5 59 2.5 11 540
100 12.5 72 2.5
120 11 71 3
THF125-100-250A 2900 120 62 63 3.8 125×100 55 850
200 60 75 4.2
240 58 74 5
1450 60 15.5 59 2.5 11 660
100 15 72 2.5
120 14.5 71 3
THF125-100-250B 2900 120 72 63 3.8 125×100 75 850
200 70 75 4.2
240 68 74 5
1450 60 18 59 2.5 15 660
100 17.5 72 2.5
120 17 71 3
THF125-100-250 2900 120 87 57 3.8 125×100 75 850
200 80 68 4.2
240 72 67 5
1450 60 21.5 56 2.5 15 660
100 20 62 2.5
120 18.5 58 3
THF125-100-315A 1450 60 26.2 57 2.5 125×100 18.5 950
100 25 68 2.5
120 24.5 67 3
THF125-100-315 1450 60 33.5 66 2.5 125×100 22 950
100 32 77 2.5
120 30.5 68 3
THF125-100-400A 1450 60 42 56 2.5 125×100 30 1050
100 40 62 2.5
120 38 58 3
THF125-100-400 1450 60 52 63 2.5 125×100 37 1050
100 50 75 2.5
120 48.5 72 3
THF150-125-250 1450 120 22.5 61 3 150×125 22 632
200 20 67 3
240 17.5 63 3.5
THF150-125-315 1450 120 34 72 2.5 150×125 45 700
200 32 74 2.5
240 29 75 3
THF150-125-400A 1450 120 42 61 2.5 150×125 45 1180
200 40 70 2.8
240 38 63 3.5
THF150-125-400 1450 120 53 61 2.5 150×125 55 1180
200 50 70 2.8
240 46 63 3.5
THF200-150-250 1450 240 21.5 67 3.5 200×150 55 700
400 20 79 4.3
460 17.5 77 5
THF200-150-315 1450 240 37 67 3 200×150 75 1180
400 32 78 3.5
460 28.5 75 4
THF200-150-400A 1450 240 42 67 3 200×150 90 1420
400 40 78 3.8
460 38 75 4.5
THF200-150-400 1450 240 55 68 3 200×150 110 1420
400 50 73 3.8
460 45 77 4.5
THF250-200-250 1450 600 22 78 4.1 250×200 55 1300
800 20 82 5
960 16 81 6
THF250-200-315 1450 600 34 76 4.8 250×200 90 2050
800 32 80 5.5
960 28 79 6.4
THF250-200-400A 1450 600 42 59 3.5 250×200 110 2500
800 40 72 4.3
960 38 71 5
THF250-200-400 1450 600 54.5 59 3.5 250×200 160 2500
800 50 72 4.3
960 39 71 5
THF300-250-315 1450 1550 35 68 3.6 300×250 220 2980
1400 32 84 4.5
1300 26 75 5.4
THF300-250-400 1450 1550 55 65 4.1 300×250 250 5000
1400 50 78 5
1300 42.5 75 6



PRE：THB(G)F fluorine lined heating(high-temperature) centrifugal pump

NEXT：TCSF small-sized no leakage fluoroplastic magnetic pump
