Meaning：	TIF80-65-160
T	Code of enterprise
I	International standard
F	Fluoroplastic
80	The inlet dia is 80mm
65	The out let dia is 65mm
160	Nominal dia of impeller is 160mm

一、Product Introduction：

Product overview:
Fluorine-lined centrifugal pump is designed and manufactured according to international standard in combination with the process of non-metallic pump, suitable for long-term delivery of multiple corrosive media of any concentration such as strong acid, alkali, salt, strong oxidant, etc., its casing is made of metal shell lined with exhaustive fluorinated ethylene propylene (FEP) and the flow components are all made of plastic alloy (PTFE, FEP), it integrates the advantages of various plastic pumps, and has the characteristics of high corrosion resistance, good wear resistance, high mechanical strength, no aging, no toxin decomposition. Both the inlet and outlet of the pump are strengthened with steel casting in order to enhance the pressure resistance of the pump. The pump has the advantages of corrosion resistance, abrasion resistance, high temperature resistance, non-oxidation, high mechanical strength, stable operation, advanced and reasonable structure, rigorous and reliable sealing performance, convenient disassembly and maintenance, long service life, etc.
Features：
1. TIF fluoroplastic centrifugal pump is designed and made according to international standard and the workmanship of non-metal pump, with merits of anti-corrosion, wear resistance, anti-aging, energy-efficiency and high mechanical strength, etc .
2. Pump body be made of metal housing with FEP, PTFE or PFA lining, the flowing-passed components like pump body, impeller, pump cover are entirely pressed and sintered of fluoroplastic (PTFE, FEP, PFA) covering metal insert.
3. Fluoroplastic (PTFE, FEP and PFA) is the most superior anti-corrosive materials in the nowadays world, be free from corrosive medium of any concentration of acid, lye, oxidants, etc.
4. The shaft seal is sealed mechanically by advanced external bellow, can be adjusted without dismounting; the optional grinding sealing surface: silicon carbide, PLSC, ceramic, PTFE, cemented carbide, etc, to make sure satisfy the demand of delivering all kinds of medium and the working life of shaft seal.
5. No need of independent lubrication and cooling, reducing energy consumption.
6. Two designs of direct coupling and axial coupling, No need of dismounting pipeline, easier maintenance.
7. Horizontal mount, small vibration, low voice, international standard design, stable operation, can exchange with standard chemical centrifugal pump, easier change and operation.
Application：
Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery strong corrosive medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Performance range： Design pressure：1.6Mpa、Flow：2-1400m3/h、Head：3-125m、Power：0.55-400kw；
Applicable temperature：-20～120℃，can be up to 180℃ if using new type material.
NOTES: Please indicate during ordering if the proportion of medium id lagger than 1.3mg/cm3.No idling running. No delivering medium with particles or crystalline.

二、Structure drawing：

Part	Material	Part	Material	Part	Material
1.pump body	Ht200/ lined F46	8.bracket	HT200	15.gland of back bearing	HT200
2.impeller	fluoroplastic alloy	9.gland of front bearing	HT200	16.Pump coupling	45#
3.gasket	fluorubber	10.front bearing	304	17.diaphragm	304
4.pump cover	HT200/lined F46	11.bearing box	HT200	18.electric coupling	45#
5.static ring	SSIC/hard alloy	12.shaft	304/316/316L	19.shield	304
6.seal gland	304/316/316L	13.pull rod	45#	20.motor	per client request
7.dynamic ring	SSIC/hard alloy	14.back bearing	304	21.base plate	HT200



三、Performance Curve：

四、Performance data sheet：

model	Rotating speed r/min	flow m3/h	Head m	effectiveness ％	NPSH m	Inlet×Outlet mm	power kw	weight kg
TIF25-20-125	2900	2	20.5	25	2.5	25×20	1.1	75
		3.2	20	32	2.5
		5.5	18	46	2.5
	1450	0.75	5.4	15	2.5		0.37	55
		1	5	17	2.5
		1.6	4.6	21	3
TIF25-20-160	2900	1.5	34.3	19	2.5	25×20	1.5	80
		2	32	22	2.5
		3.2	29.6	25	3
	1450	0.75	8.5	16	2.5		0.37	55
		1	8	18	2.5
		1.6	7.5	24	3
TIF25-20-200A	2900	1.5	42	28	2.5	25×20	3	124
		2	40	32	2.5
		3.2	38	30	3
	1450	0.75	10.5	15	2.5		0.55	90
		1	10	18	2.5
		1.6	9.5	24	3
TIF25-20-200	2900	1.5	52.5	18	2.5	25×20	4	124
		2	50	20	2.5
		3.2	48	22	3
	1450	0.75	13.1	15	2.5		0.75	90
		1	12.5	18	2.5
		1.6	12	24	3
TIF25-20-250A	2900	1.5	62	26	2.5	25×20	7.5	225
		2	60	30	2.5
		3.2	58	28	3
	1450	0.75	15.5	15	2.5		1.5	118
		1	15	18	2.5
		1.6	14.5	24	3
TIF25-20-250B	2900	1.5	72	26	2.5	25×20	5.5	225
		2	70	30	2.5
		3.2	68	28	3
	1450	0.75	18	15	2.5		1.1	118
		1	17.5	18	2.5
		1.6	17	24	3
TIF25-20-250	2900	2	80	12	2.5	25×20	7.5	225
		3.6	80	18	2.5
		5.5	78.5	26	3
	1450	0.75	20.5	11	2.5		1.5	118
		1	20	16	2.5
		1.6	19.5	24	3
TIF32-20-125	2900	2	22	25	2.5	32×20	1.5	75
		3.2	20	32	2.5
		5.5	18.5	46	3
	1450	1	5.4	24	2.5		0.55	45
		1.6	5	22	2.5
		2.75	4.6	22.5	3
TIF32-20-160	2900	2	34.3	25	2.5	32×20	2.2	98
		3.2	32	24	2.5
		5.5	29.6	21.5	3
	1450	1	8.5	18	2.5		0.55	55
		1.6	8	22	2.5
		2.75	7.5	24.5	3
TIF32-20-200A	2900	2	42	32	2.5	32×20	4	140
		3.2	40	36	2.5
		5.5	38	34	3
	1450	1	10.5	25	2.5		0.75	78
		1.6	10	28	2.5
		2.75	9.5	26	3
TIF32-20-200	2900	2	52.5	22	2.5	32×20	4	140
		3.2	50	26	2.5
		5.5	48	28.5	3
	1450	1	13.1	15	2.5		0.75	78
		1.6	12.5	18	2.5
		2.75	12	19.5	3
TIF32-20-250A	2900	2	62	26	2.5	32×20	7.5	160
		3.2	60	30	2.5
		5.5	58	28	3
	1450	1	15.5	15	2.5		1.1	98
		1.6	15	18	2.5
		2.75	14.5	24	3
TIF32-20-250B	2900	2	72	26	2.5	32×20	7.5	160
		3.2	70	30	2.5
		5.5	68	28	3
	1450	1	18	15	2.5		1.1	98
		1.6	17.5	18	2.5
		2.75	17	24	3
TIF32-20-250	2900	2	82	16	2.5	32×20	11	160
		3.2	80	20	2.5
		5.5	78.5	23	3
	1450	1	20.5	15	2.5		1.5	98
		1.6	20	18	2.5
		2.75	19.5	24	3
TIF40-25-125	2900	6.3	22	30	2.5	40×25	2.2	75
		8	32	31	2.5
		10	30	32	3
	1450	2.2	5.4	26	2.5		0.55	42
		3.2	5	28	2.5
		4.2	4.6	32	3
TIF40-25-160	2900	6.3	32	30	2.5	40×25	3	124
		8	32	31	2.5
		10	30	32	3
	1450	2.2	8.5	23	2.5		0.55	78
		3.2	8	25	2.5
		4.2	7.5	28	3
TIF40-25-200A	2900	4.4	42	26	2.5	40×25	4	170
		6.3	40	33	2.5
		8.3	38	32	3
	1450	2.2	10.5	25	2.5		0.55	102
		3.2	10	28	2.5
		4.2	9.5	26	3
TIF40-25-200	2900	6.3	52.5	20	2.5	40×25	5.5	170
		8	50	23	2.5
		10	48	30	3
	1450	2.2	13.1	25	2.5		1.1	102
		3.2	12.5	28	2.5
		4.2	12	26	3
TIF40-25-250A	2900	4.4	62	24	2.5	40×25	7.5	255
		6.3	60	28	2.5
		8.3	58	28	3
	1450	2.2	15.5	20	2.5		1.1	155
		3.2	15	24	2.5
		4.2	14.5	22	3
TIF40-25-250B	2900	4.4	72	24	2.5	40×25	11	255
		6.3	70	28	2.5
		8.3	68	28	3
	1450	2.2	18	20	2.5		1.5	155
		3.2	17.5	24	2.5
		4.2	17	22	3
TIF40-25-250	2900	4.4	82	24	2.5	40×25	11	255
		6.3	80	28	2.5
		8.3	78.5	28	3
	1450	2.2	20.5	20	2.5		1.5	155
		3.2	20	24	2.5
		4.2	19.5	22	3
TIF50-32-125	2900	7.5	22	43	2	50×32	3	110
		12.5	20	51	2
		15	18.5	49	2.5
	1450	3.75	5.4	40	2		0.55	55
		6.3	5	45	2
		7.5	4.6	42	2.5
TIF50-32-160	2900	7.5	34.3	35	2	50×32	4	135
		12.5	32	47	2
		15	29.6	47	2.5
	1450	3.72	8.5	30	2		0.55	68
		6.3	8	40	2
		7.5	7.5	40	2.5
TIF50-32-200A	2900	7.5	42	28	2	50×32	5.5	180
		12.5	40	39	2
		15	38	43	2.5
	1450	3.7	10.5	23	2		0.75	170
		6.3	10	33	2
		7.5	9.5	36	2.5
TIF50-32-200	2900	7.5	52.5	28	2	50×32	7.5	180
		12.5	50	40	2
		15	48	48	2.5
	1450	3.7	13.1	22	2		1.1	170
		6.3	12.5	33	2
		7.5	12	40	2.5
TIF50-32-250A	2900	7.5	62	23	2	50×32	7.5	255
		12.5	60	33	2
		15	58	36.5	2.5
	1450	3.75	15.5	17	2		1.1	155
		6.3	15	27	2
		7.5	14.5	31	2.5
TIF50-32-250B	2900	7.5	72	23	2	50×32	15	255
		12.5	70	33	2
		15	68	36.5	2.5
	1450	3.75	18	17	2		2.2	155
		6.3	17.5	27	2
		7.5	17	31	2.5
TIF50-32-250	2900	7.5	82	23	2	50×32	18.5	255
		12.5	80	33	2
		15	78.5	36.5	2.5
	1450	3.75	20.5	17	2		2.2	155
		6.3	20	30	2
		7.5	19.5	33	2.5
TIF65-50-125	2900	15	21.8	46	2	65×50	4	135
		25	20	61	2
		30	18.5	67	2.5
	1450	7.5	5.35	46	2		0.55	75
		12.5	5	61	2
		15	4.7	67	2.5
TIF65-50-160	2900	15	35	46	2	65×50	5.5	155
		25	32	56	2
		30	30	65	2.5
	1450	7.5	8.8	40	2		1.1	145
		12.5	8	51	2
		15	7.2	60	2.5
TIF65-40-200A	2900	15	42	41	2	65×40	7.5	210
		25	40	52	2
		30	38	53.5	2.5
	1450	7.5	10.5	35	2		1.5	132
		12.5	10	46	2
		15	9.5	47.5	2.5
TIF65-40-200	2900	15	53	35	2	65×40	11	210
		25	50	51	2
		30	47	48	2.5
	1450	7.5	13.2	30	2		1.5	132
		12.5	12.5	46	2
		15	11.8	42	2.5
TIF65-40-250A	2900	15	62	34	2	65×40	15	360
		25	60	46	2
		30	58	50	2.5
	1450	7.5	15.5	28	2		2.2	240
		12.5	15	39	2
		15	14.5	43	2.5
TIF65-40-250B	2900	15	72	34	2	65×40	18.5	360
		25	70	46	2
		30	68	50	2.5
	1450	7.5	18	28	2		3	240
		12.5	17.5	39	2
		15	17	43	2.5
TIF65-40-250	2900	15	82	33	2	65×40	22	360
		25	80	48	2
		30	78	50	2.5
	1450	7.5	21	28	2		4	240
		12.5	20	43	2
		15	19.4	45	2.5
TIF65-40-315A	2900	15	105	28	2.5	65×40	30	480
		25	100	39	2.5
		30	98	42.5	3
	1450	7.5	26.2	22	2.5		5.5	260
		12.5	25	33	2.5
		15	24.5	37	3
TIF65-40-315	2900	15	127	28	2.5	65×40	37	480
		25	125	39	2.5
		30	123	42.5	3
	1450	7.5	32.3	22	2.5		5.5	260
		12.5	32	33	2.5
		15	31.7	37	3
TIF80-65-125	2900	30	22.5	52	3	80×65	7.5	195
		50	20	65	3
		60	18	70	3.5
	1450	15	5.6	50	2.5		1.1	125
		25	5	64	2.5
		30	4.5	68	3
TIF80-65-160	2900	30	36	60	2.5	80×65	11	228
		50	32	64	2.5
		60	29	53	3
	1450	15	9	58	2.5		1.5	145
		25	8	62	2.5
		30	7.2	50	3
TIF80-50-200A	2900	30	42	53	2.5	80×50	15	250
		50	40	63	2.5
		60	38	62	3
	1450	15	10.5	44	2.5		2.2	155
		25	10	57	2.5
		30	9.5	58	3
TIF80-50-200	2900	30	53	53	2.5	80×50	15	250
		50	50	63	2.5
		60	47	55	3
	1450	15	13.2	49	2.5		3	155
		25	12.5	57	2.5
		30	11.8	48	3
TIF80-50-250A	2900	30	62	44	2.5	80×50	22	480
		50	60	57	2.5
		60	58	59	3
	1450	15	15.5	39	2.5		3	370
		25	15	51	2.5
		30	14.5	52.5	3
TIF80-50-250B	2900	30	72	44	2.5	80×50	30	480
		50	70	57	2.5
		60	68	59	3
	1450	15	18	39	2.5		4	400
		25	17.5	51	2.5
		30	17	52.5	3
TIF80-50-250	2900	30	84	48	2.5	80×50	37	480
		50	80	56	2.5
		60	75	50	3
	1450	15	21	39	2.5		5.5	400
		25	20	51	2.5
		30	18.8	52.5	3
TIF80-50-315A	2900	30	105	39	2.5	80×50	45	560
		50	100	51	2.5
		60	98	52.5	3
	1450	15	26.2	35	2.5		7.5	476
		25	25	46	2.5
		30	24.5	47.5	3
TIF80-50-315	2900	30	128	39	2.5	80×50	55	560
		50	125	51	2.5
		60	123	52.5	3
	1450	15	32.5	35	2.5		11	476
		25	32	46	2.5
		30	31.5	47.5	3
TIF100-80-125	2900	60	24	64	4	100×80	11	245
		100	20	65	4.5
		120	16.5	63	5
	1450	30	6	60	2.5		1.5	198
		50	5	64	2.5
		60	4	63	3
TIF100-80-160	2900	60	36	60	3.5	100×80	18.5	250
		100	32	70	4
		120	28	65	5
	1450	30	9.2	58	2		3	192
		50	8	69	2.5
		60	6.8	68	3.5
TIF100-65-200A	2900	60	42	63	3	100×65	30	480
		100	40	72	3.6
		120	38	71	4.8
	1450	30	10.5	60	2		4	180
		50	10	68	2
		60	9.5	63	2.5
TIF100-65-200	2900	60	54	63	3	100×65	37	256
		100	50	68	3.6
		120	47	56	4.8
	1450	30	13.5	60	2		5.5	246
		50	12.5	68	2
		60	11.8	63	2.5
TIF100-65-250A	2900	60	62	57	3.5	100×65	37	382
		100	60	68	3.8
		120	58	67	4.8
	1450	30	15.5	50	2		5.5	342
		50	15	63	2
		60	14.5	64	2.5
TIF100-65-250B	2900	60	72	57	3.5	100×65	45	480
		100	70	68	3.8
		120	68	67	4.8
	1450	30	18	50	2		5.5	360
		50	17.5	63	2
		60	17	64	2.5
TIF100-65-250	2900	60	87	60	3.5	100×65	45	550
		100	80	68	3.8
		120	74.5	67	4.8
	1450	30	21.3	50	2		7.5	420
		50	20	65	2
		60	19	64	2.5
TIF100-65-315A	2900	60	105	48	3	100×65	55	670
		100	100	62	3.6
		120	98	64	4.2
	1450	30	26.2	44	2		7.5	580
		50	25	58	2
		60	24.5	60	2.5
TIF100-65-315	2900	60	133	63	3	100×65	75	670
		100	125	65	3.6
		120	118	62	4.2
	1450	30	34	60	2		11	580
		50	32	64	2
		60	30	63	2.5
TIF125-100-200	2900	120	57.5	54	4.5	125×100	55	660
		200	50	68	4.5
		240	44.5	61	5
	1450	60	14.5	59	2.5		11	540
		100	12.5	72	2.5
		120	11	71	3
TIF125-100-250A	2900	120	62	63	3.8	125×100	55	850
		200	60	75	4.2
		240	58	74	5
	1450	60	15.5	59	2.5		11	660
		100	15	72	2.5
		120	14.5	71	3
TIF125-100-250B	2900	120	72	63	3.8	125×100	75	850
		200	70	75	4.2
		240	68	74	5
	1450	60	18	59	2.5		15	660
		100	17.5	72	2.5
		120	17	71	3
TIF125-100-250	2900	120	87	57	3.8	125×100	75	850
		200	80	68	4.2
		240	72	67	5
	1450	60	21.5	56	2.5		15	660
		100	20	62	2.5
		120	18.5	58	3
TIF125-100-315A	1450	60	26.2	57	2.5	125×100	18.5	950
		100	25	68	2.5
		120	24.5	67	3
TIF125-100-315	1450	60	33.5	66	2.5	125×100	22	950
		100	32	77	2.5
		120	30.5	68	3
TIF125-100-400A	1450	60	42	56	2.5	125×100	30	1050
		100	40	62	2.5
		120	38	58	3
TIF125-100-400	1450	60	52	63	2.5	125×100	37	1050
		100	50	75	2.5
		120	48.5	72	3
TIF150-125-250	1450	120	22.5	61	3	150×125	22	632
		200	20	67	3
		240	17.5	63	3.5
TIF150-125-315	1450	120	34	72	2.5	150×125	45	700
		200	32	74	2.5
		240	29	75	3
TIF150-125-400A	1450	120	42	61	2.5	150×125	45	1180
		200	40	70	2.8
		240	38	63	3.5
TIF150-125-400	1450	120	53	61	2.5	150×125	55	1180
		200	50	70	2.8
		240	46	63	3.5
TIF200-150-250	1450	240	21.5	67	3.5	200×150	55	700
		400	20	79	4.3
		460	17.5	77	5
TIF200-150-315	1450	240	37	67	3	200×150	75	1180
		400	32	78	3.5
		460	28.5	75	4
TIF200-150-400A	1450	240	42	67	3	200×150	90	1420
		400	40	78	3.8
		460	38	75	4.5
TIF200-150-400	1450	240	55	68	3	200×150	110	1420
		400	50	73	3.8
		460	45	77	4.5
TIF250-200-250	1450	600	22	78	4.1	250×200	55	1300
		800	20	82	5
		960	16	81	6
TIF250-200-315	1450	600	34	76	4.8	250×200	90	2050
		800	32	80	5.5
		960	28	79	6.4
TIF250-200-400A	1450	600	42	59	3.5	250×200	110	2500
		800	40	72	4.3
		960	38	71	5
TIF250-200-400	1450	600	54.5	59	3.5	250×200	160	2500
		800	50	72	4.3
		960	39	71	5
TIF300-250-315	1450	1550	35	68	3.6	300×250	220	2980
		1400	32	84	4.5
		1300	26	75	5.4
TIF300-250-400	1450	1550	55	65	4.1	300×250	250	5000
		1400	50	78	5
		1300	42.5	75	6

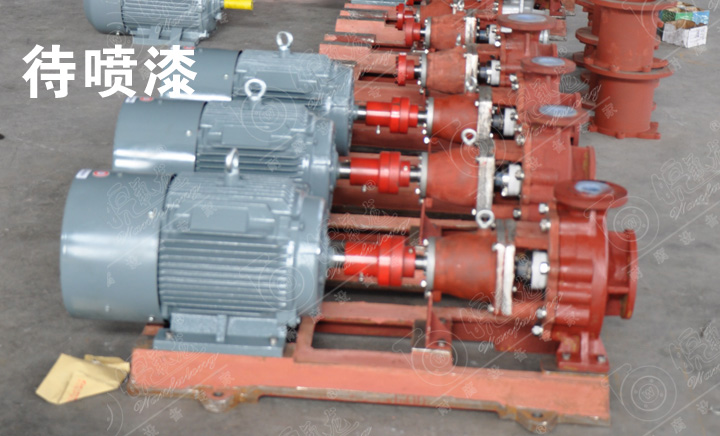

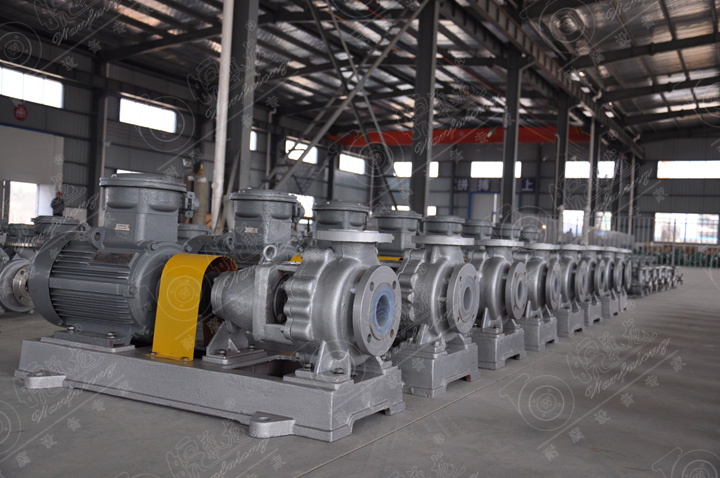

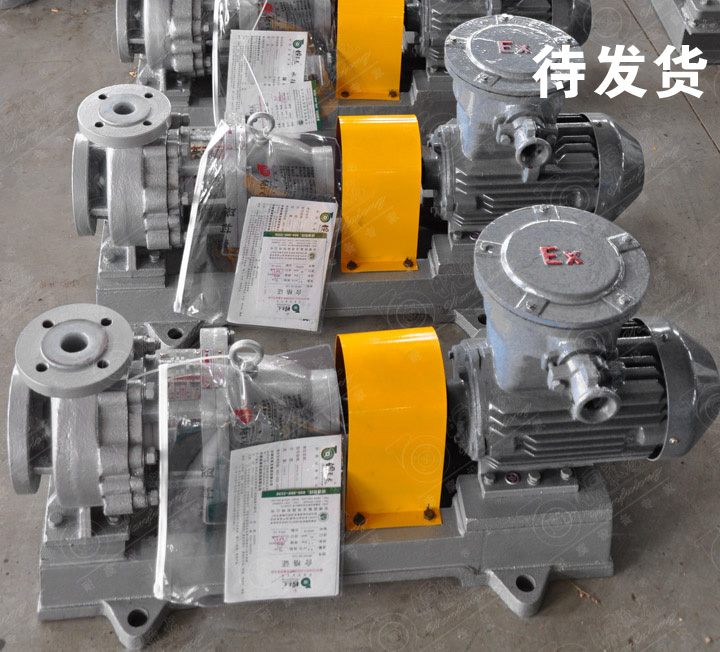

六、Product real:
