| Meaning | TICB(G)F80-65-160 |
| T | Code of enterprise |
| I | Internatioanl standard centrifugal pump |
| C | Magnetic driven |
| B | Heating type |
| G | High-temperature |
| F | Fluoroplastic |
| 80 | The inlet dia is 80mm |
| 65 | The outlet dia is 65mm |
| 160 | Nominal dia of impeller is 160mm |

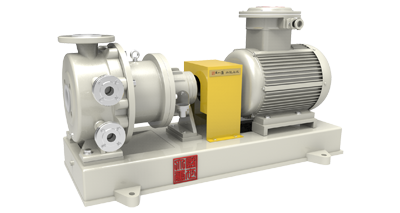

一、Product Introduction：
Product overview:
No leakage lining fluorine magnetic high (Paul) temperature centrifugal pump (referred to as: lining fluorine high temperature magnetic pump) is the application of modern magnetic mechanics principle, using permanent magnet magnetic drive to achieve torque without contact transmission of a new type of pump is driven by the motor outer rotor (i.e., outside the magnet) rotation, through the action of a magnetic field lines through the isolation sleeve drives the inner rotor in the magnet) and impeller synchronous rotation, due to media enclosed in a static isolation sleeve, so as to achieve the purpose of pumping medium without leakage. Pump body and cover design of the double-layer cooling (heat) device, the high temperature magnetic pump can use of water and nitrogen on pump body cooling medium, to ensure access to pump the medium is maintained at a lower temperature, magnetic heat pump into steam and thermal insulation of the medium in the pump body, to ensure that the media in the conveying process not condensation, crystallization, vaporization, completely solve the mechanical pump seal leakage, condensation and crystallization, vaporization, and design of full seal, no leakage, no pollution, high temperature resistant, thermal insulation, energy efficient new industrial pump. Performance of the international standard, can replace the expensive stainless steel, special alloy materials, imported chemical pump.
Features：
1. TICBF no leakage fluorine lined magnetic heating pump is a new type industrial pump of full sealing, no leakage, no pollution, high-temperature resistance and strong anti-acid, which is designed voluntarily according to international standards of ISO2858 and DIN24256 by ourselves.
2. The whole pump body be sintered and pressed of cast-iron with fluorine lined (PTFE, FEP, and PEA).
2.1 The pump body and cover of magnetic heat pump have two-ply heat equipment, be allowed use steam to heat medium in heat pump, ensures medium won’t condense, crystallize or gasify during delivering.
3. The flowing-passed components like pump body, impeller, pump cover are entirely pressed and sintered of fluoroplastic (PTFE, FEP, PFA) covering metal insert.
4. Fluoroplastic (PTFE, FEP and PFA) is the most superior anti-corrosive materials in the nowadays world, be free from corrosive medium of any concentration of acid, lye, oxidants, etc.
5. New type permanent magnet with good magnetism, high temperature resistant and No demagnetization is selected.
6. Shaft sleeve, sleeve bearings are made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the pump’s working life.
7. Enclosed static seal completely solves the problem of dielectric leakage.
8. International standards axial coupling pull back design, No need to dismount pipe, easier maintenance.
9. Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
10. No contact and no friction, change coupling transmission to synchronic pulling. Power consumption of small, high efficiency, and has a damping effect, reducing vibration on the pump motor and pump in the effects of cavitations vibration when the impact of the motor.
Performance range：design pressure：1.6Mpa、flow:2-400m3/h、head：12-125m、power：1.1-110kw
Applicable temperature: -20～180℃
The optional accessories：preventive idling running device, monitoring of leakage device, monitoring of temperature device.
NOTES: Please indicate during ordring if the proportion of medium is largger than 1.3mg/cm3.No idling running. No delivering medium with particles or crystalline.
二、Structure drawing：
| Part | Material | Part | Material | Part | Material |
| 1.pump body | Ht200 lined F46 | 9.pump shaft | SSIC | 16.ack bearing | GCR15 |
| 2.choma of pump body | filled with PTFE | 10.inner rotor assembly | Ht200 lined F46/permenant magnetic | 17.gland of back bearing | HT200 |
| 3.impeller assembly | fluoroplastic alloy/SSIC/ filled with PTFE | 11.outer rotor assembly | Ht200/permenant magnetic | 18.diaphragm coupling | 45#/304 |
| 4.choma | SIC | 12.connection | HT200 | 19.shield | 304/AL |
| 5.shaft sleeve | Impregnated graphite/SIC | 13.gland of front bearing | HT200 | 20.base plate | HT200 |
| 6.gasket | fluorubber/PTFE | 14.front bearing | GCR15 | 21.motor | per client request |
| 7.distance sleeve assembly | 1Cr19Ni9Ti PEEK/PTFE | 15.bearing box | HT200 | ||
| 8.shaft | SSIC | drive shaft | 45# |
三、Performance Curve：
四、Performance data sheet：
