Model significance	TC(B)80-65-160
T	Enterprise Code
C	Magnetic drive
80	Import caliber 80mm
65	Outlet aperture 65mm
160	Nominal diameter of the impeller 160mm

一、Product Introduction：

Product overview:
Non-leaking magnetic centrifugal pump(shorter form: magnetic driven pump) is application of modern magnetic principles, which is a new type pump using the magnetic transmission of permanent magnet to implement torque’s contactless transmission, that is, when electric motor drives outer rotor(i.e. outer magnetic steel) assembly rotating, under magnetic field, magnetic line of force pass through distance sleeve drives inner rotor(i.e. inner magnetic steel) assembly rotating synchronously with impeller. The purpose of pumping media with no leaking is due to the media closed in still distance sleeve, which completely solve the problem of shaft seal leakage of mechanical pump. This new design industrial pump has many characteristics of full sealing, no leakage, no pollution and energy-efficient, its performance already reaches international standard, thus can replace the expensive imported chemical pump.
Design features:
1.TCQ non-leaking magnetic centrifugal pump is a new type industrial pump with characteristics of full sealing, no leakage, no pollution and energy-efficient.
The flowing-passed components like pump body, inner rotor, pump cover, impeller, distance sleeve, etc, are all made of superior stainless steel or special materials.
Ferrite magnet with good magnetism, high temperature resistant and no demagnetization is selected.
Rotating ring, shaft sleeve, sleeve bearings are made of graphite and PTFE material with good characteristic of superior wear resistance, high temperature resistance, which guarantee the pump’s working life.
2.Enclosed static seal completely solves the problem of dielectric leakage.
3.No need of independent lubrication and cooling water, reducing energy consumption.
4.Direct coupling pull back design, no need to dismount pipe, easier maintenance.
5.Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
6.No contact and no friction, change coupling transmission to synchronic pulling. Power consumption of small, high efficiency, and has a damping effect, reducing vibration on the pump motor and pump in the effects of cavitations vibration when the impact of the motor.
Application:
Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery media of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Design pressure: 0.6Mpa
Flow: 1.2-100m3/h
Head: 5-50m
Power: 0.12-15kw
Applicable temperature: -30～120℃, can be up to 350℃ if using new material.
The optional accessories: preventive idling running device, monitoring of leakage device
Notes: No idling running. No delivering media if the proportion is larger than 1.3mg/cm3.No delivering media with particle or crystalline.

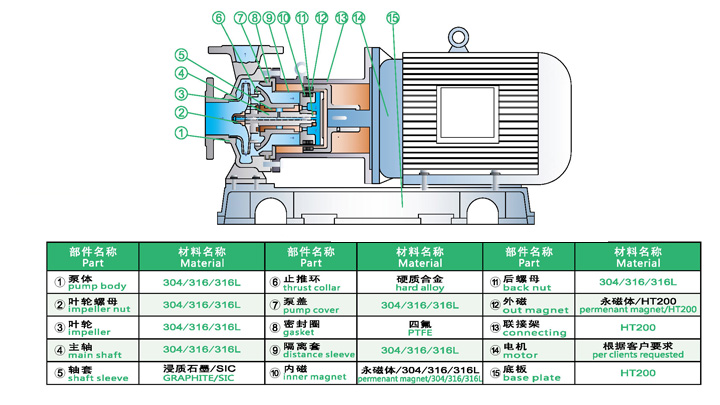

二、Structure drawing：

Part	Material	Part	Material	Part	Material
1.pump body	304/316/316L	6.thrust collar	hard alloy	11.back nut	304/316/316L
2.impeller nut	304/316/316L	7.pump cover	304/316/316L	12.out magnet	permenant magnet/HT200
3.impeller	304/316/316L	8.gasket	PTFE	13.connecting	HT200
4.main shaft	304/316/316L	9.distance sleeve	304/316/316L	14.motor	per clients requested
5.shaft sleeve	GRAPHITE/SIC	10.inner magnet	permenant magnet/304/316/316L	15.base plate	HT200



三、Performance Curve：

四、Performance data sheet：

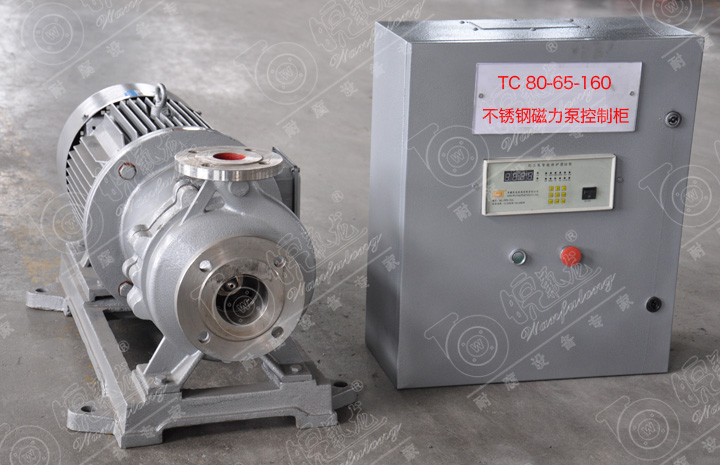

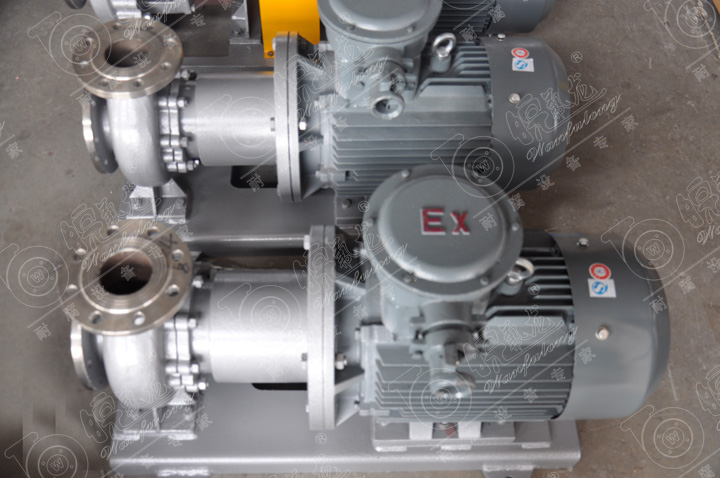

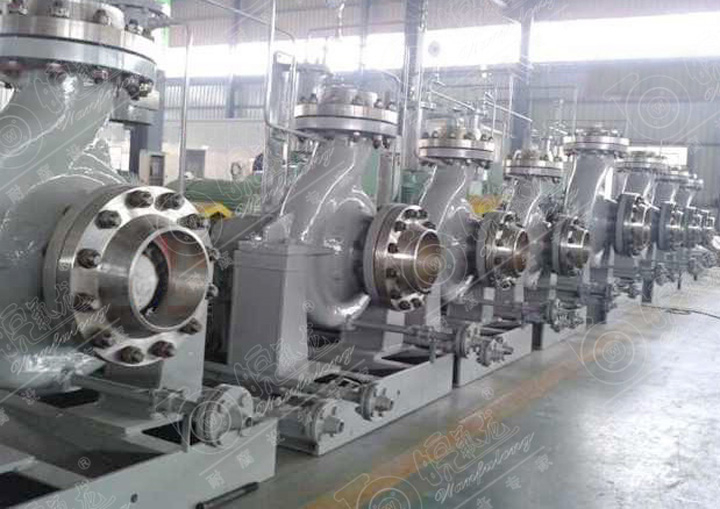

Products real picture：
