| Meaning | TI80-65-160 |
| T | Code of enterprise |
| I | International standard |
| 80 | The inlet dia is 80mm |
| 65 | The out let dia is 65mm |
| 160 | Nominal dia of impeller is 160mm |
一、Product Introduction：
FEATURES：
1.TI chemical centrifugal pump is designed voluntarily according to international standards of ISO2858, GB5662 AND DIN24256 by ourselves. The technical index and performance has already reached domestic and international advanced level of similar products.
2.The flowing-passed components like pump body, inner rotor, pump cover, impeller, distance sleeve, etc, are all made of superior stainless steel or special materials.
3.The shaft seal is built-in type single mechanical seal; the optional grinding sealing surface: silicon carbide, cemented carbide, etc; Clients also can choose double mechanical seal or external mechanical seal as required, to make sure satisfy the demand of delivering all kinds of medium and the working life of shaft seal.
4.Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
Application: Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery strong corrosive medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Performance range: Design pressure: 1.6Mp, Flow: 2-1200m3/h, Head: 3-125m, Power: 1.1-200kw
Applicable temperature: -20～350℃
NOTES: Please indicate during ordering if the proportion of medium os larger than 1.3mg/cm3. No idling running. No delivering medium with particles or crystalline.
二、Structure drawing：
| Part | Material | Part | Material | Part | Material |
| 1.Pump body | 304/316/316L | 8.Dynamic ring | SSIC/HARD ALLOY | 15.Back gland of bearing | HT200 |
| 2.Impller nut | 304 | 9.pump shaft | 304/316/316L | 16.Pump coupling | 45# |
| 3.Impeller | 304/316/316L | 10.Bracket | HT200 | 17.Diaphragm | 45# |
| 4.Gasket | PTFE | 11.Front gland of bearing | HT200 | 18.Electric coupling | 45# |
| 5.Pump cover | 304/316/316L | 12.Front bearing | Rolling bearing | 19.Shield | 304 |
| 6.Static ring | SSIC/HARD ALLOY | 13.Bearing box | HT200 | 20.Motor | Per clients requested |
| 7.Seal gland | 304/316/316L | 14.Back bearing | Rolling bearing | 21.Base plate | HT200 |
Structure drswing for long bracket series
三、Performance Curve：
四、Performance data sheet：

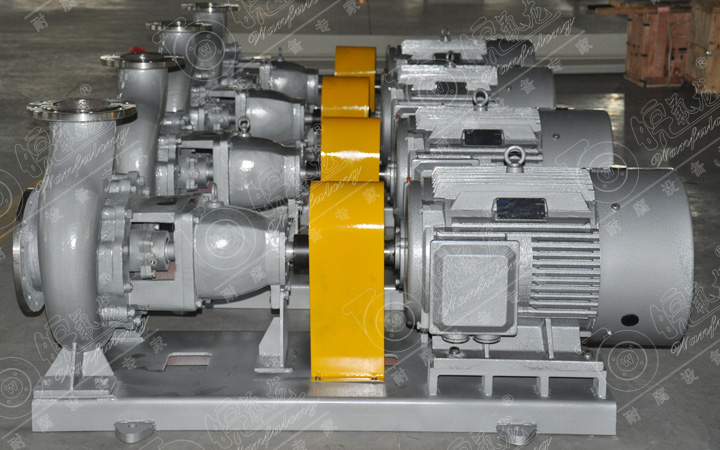

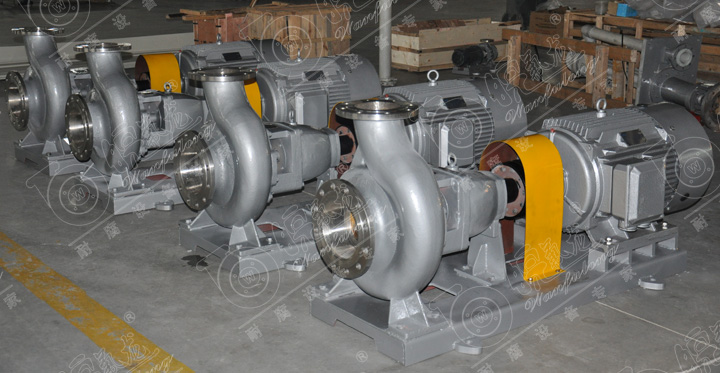

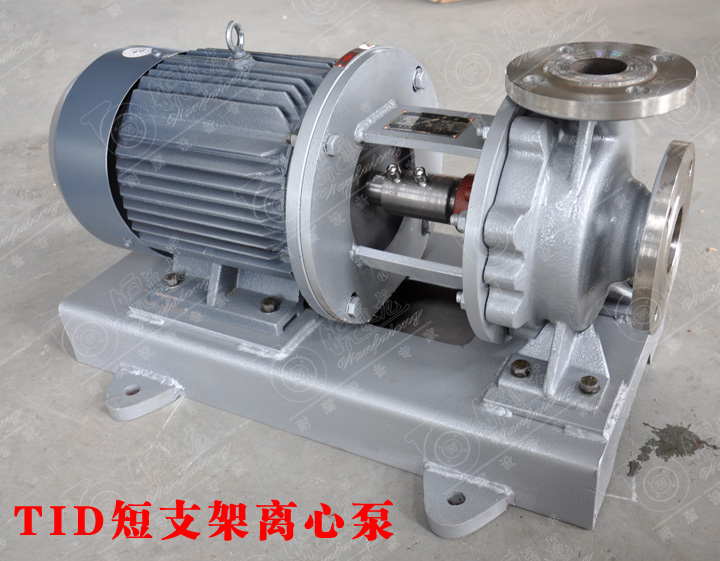

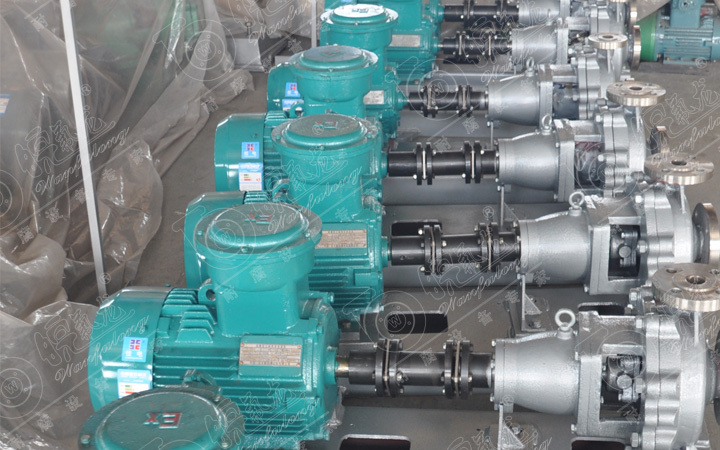

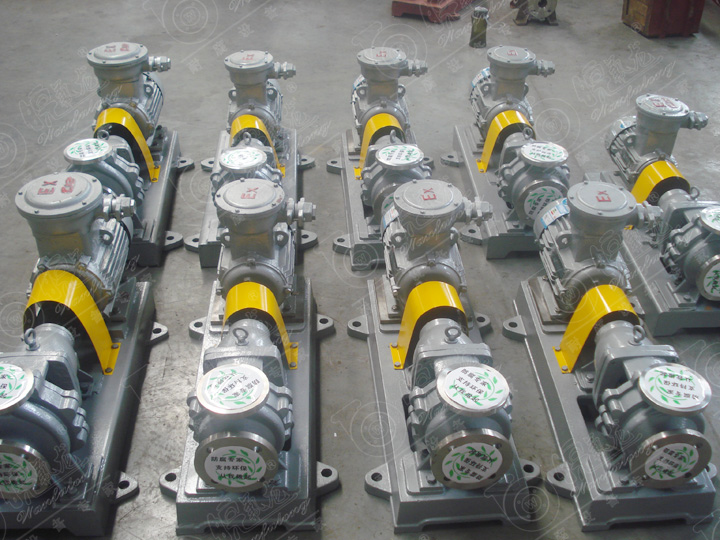

Virtual product：
